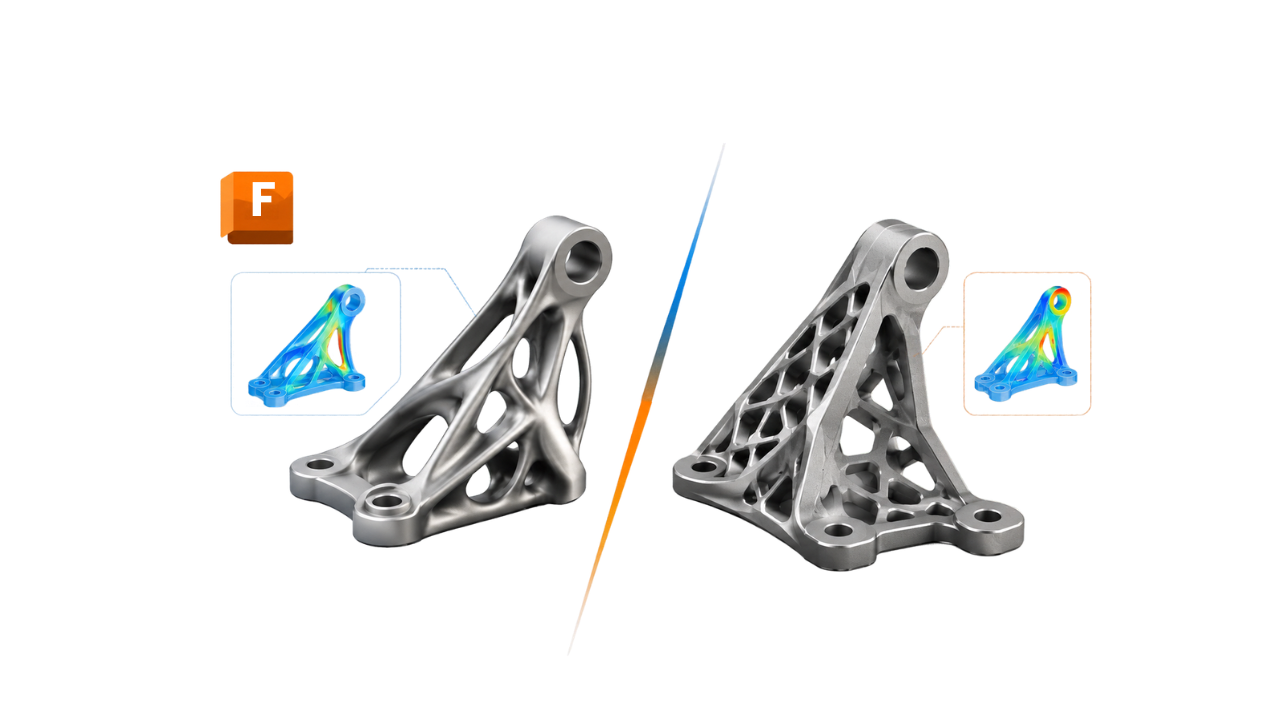

Fusion 360 Generative Design vs. Topology Optimization: Which Should You Use?

Modern product design is no longer limited to creating a shape, running a simulation, and modifying the model until it performs well. Engineers can now use optimization techniques to reduce material, improve structural performance, and explore innovative component designs.

Two important approaches in this area are Generative Design and Topology Optimization. Both can help engineers develop lightweight, efficient components, but they work differently and suit different design requirements.

In Autodesk Fusion 360, understanding these differences can help you choose the right workflow for mechanical parts, automotive components, aerospace structures, brackets, and other engineering applications.

In this guide, we will explain how generative design and topology optimization work, compare their benefits and limitations, and show you when to use each approach.

What Is Generative Design in Fusion 360?

Generative Design is a design exploration approach that uses defined engineering requirements to produce multiple possible design solutions.

Instead of relying entirely on a designer to develop one geometry and refine it, you provide the software with information such as:

• Design requirements: Areas where geometry must remain unchanged and areas where material must not be added.
• Loads and constraints: Forces, supports, and other conditions the component must withstand.
• Materials: Suitable material properties for the intended application.
• Manufacturing methods: Processes such as additive manufacturing, milling, or other supported manufacturing approaches.
• Performance objectives: Targets related to mass, stiffness, displacement, and other supported criteria.

Fusion 360 evaluates the specified conditions and generates design alternatives that satisfy the study requirements. You can then compare the available outcomes and select a suitable candidate for further engineering work.

For example, imagine designing a lightweight mounting bracket for an automotive assembly. You need to retain the mounting holes, support a specified load, and avoid interference with nearby components.

Generative Design can explore different structural forms that connect the required mounting regions while considering your manufacturing and performance requirements.

Best suited for: Exploring multiple design concepts, developing lightweight components, comparing manufacturing approaches, and discovering geometries that may not be obvious through conventional modeling.

What Is Topology Optimization in Fusion 360?

Topology Optimization is a computational technique that identifies how material can be distributed within a defined design space to meet specified structural objectives and constraints.

It typically starts with an existing component or a defined volume of material. Based on the applied loads, supports, and optimization criteria, the solver identifies regions where material is important for carrying loads and regions where material may be reduced.

The resulting shape can reveal efficient load paths and suggest opportunities to remove unnecessary material.

For example, consider a steel bracket supporting a mechanical assembly. The original design may contain more material than necessary in certain regions. A topology optimization study can identify areas that contribute less to the required structural performance.

The resulting geometry may contain organic curves, branching ribs, or openings that differ from the original design.

However, the optimized output should not automatically be treated as a finished production component. Depending on the workflow, additional modeling, smoothing, redesign, and validation may be necessary before manufacturing.

Best suited for: Improving an existing component, investigating material distribution, reducing mass, and identifying structural improvements while working within a defined design space.

Generative Design vs. Topology Optimization: Key Differences

Although both techniques aim to improve component performance, their primary approaches differ.

Note: These are general workflow distinctions. Exact capabilities, output formats, and manufacturing constraints depend on the software tools and study configuration.

In Fusion 360, generative design supports exploration of multiple outcomes, while topology or shape optimization helps identify efficient material layouts. Autodesk's learning resources also explain how these approaches differ in their use of a starting geometry and the results they produce.

How to Perform Generative Design in Fusion 360

Follow this general workflow to understand how a generative design study is prepared.

Step 1: Create or Prepare the Component

Start with a mechanical component, such as a mounting bracket, suspension link, or structural support. Identify the regions that must remain available for mounting, connecting, or contacting other components. Ensure that the geometry represents the intended engineering problem.

Step 2: Define Preserve and Obstacle Geometry

Preserve geometry identifies regions that must remain in the resulting design, such as bolt holes and connection interfaces. Obstacle geometry represents regions where the generated component must not extend, such as spaces occupied by adjacent parts or moving components.

Step 3: Apply Loads and Constraints

Specify the forces acting on the component and the locations where it is supported or connected. Use realistic loading conditions and appropriate constraints.

Step 4: Set Design Objectives

Choose appropriate performance goals and limits. Depending on the study, these may include minimizing mass, maximizing stiffness, limiting displacement, or satisfying safety-factor requirements.

Step 5: Generate and Compare Outcomes

Run the study and review the resulting design alternatives. Compare factors such as mass, structural performance, manufacturing feasibility, and material requirements.

Step 6: Validate the Selected Design

Review the selected geometry and prepare it for detailed engineering. Check dimensions, interfaces, clearances, and manufacturability.

How to Perform Topology Optimization in Fusion 360

Topology or shape optimization follows a different approach, focusing on the material distribution within a defined design space.

Step 1: Build the Initial Design Space

Create the initial component or volume that represents the maximum space available for the part, including interfaces and mounting points.

Step 2: Define Loads and Supports

Apply realistic loads and constraints to represent how the component will be used in practice.

Step 3: Define Optimization Criteria

Specify the performance target, such as reducing mass while maintaining required structural performance.

Step 4: Run the Optimization Study

The solver evaluates the design space and identifies an efficient material distribution for the selected conditions.

Step 5: Interpret and Refine the Result

The optimized output may contain irregular or organic-looking geometry. Use the result as a guide for developing a manufacturable component.

Step 6: Validate the Final Component

Check the redesigned component against original requirements to confirm strength, stiffness, and safety criteria.

Practical Example: Designing a Lightweight Mounting Bracket

Suppose you need to design a bracket for an industrial machine. The bracket must support a load, retain two mounting interfaces, and fit within a restricted space.

Using Generative Design: You define the mounting interfaces, loads, obstacles, material options, and manufacturing requirements. Fusion 360 explores alternative structural forms that satisfy the study conditions.

Using Topology Optimization: You start with a defined bracket design space and apply required loads and supports. The optimization identifies where material can be removed while meeting specified performance criteria.

Benefits and Limitations of Both Approaches

Benefits of Generative Design

• Explores multiple design alternatives.
• Supports engineering decisions based on defined performance requirements.
• Can incorporate supported manufacturing constraints into the study.
• Helps investigate unconventional structural forms.

Limitations of Generative Design

• Requires careful preparation of design conditions and preserve or obstacle regions.
• Generating and reviewing outcomes can require computational resources and time.
• Not every generated outcome will be practical or economical to manufacture.

Benefits of Topology Optimization

• Identifies potentially unnecessary material.
• Helps reveal structural load paths.
• Supports lightweight component development.

Limitations of Topology Optimization

• Results depend strongly on the initial design space, loads, and constraints.
• Optimized geometry may require additional CAD work before manufacturing.
• Optimizing one load case does not guarantee good performance under every operating condition.

Common Mistakes to Avoid

Whether you choose generative design or topology optimization, avoid these common errors:

1. Applying unrealistic loads: Incorrect forces or supports can lead to misleading results.
2. Ignoring the manufacturing process: A shape suitable for additive manufacturing may not suit conventional CNC machining.
3. Removing essential mounting geometry: Mounting holes and connection interfaces must remain intact.
4. Selecting a design based only on weight: Evaluate structural performance, durability, and cost alongside mass.
5. Skipping final validation: Optimization is not a substitute for thorough engineering judgment.

Which Should You Use: Generative Design or Topology Optimization?

Choose Generative Design when you want to explore multiple candidate solutions, investigate alternative structural forms, and compare designs against engineering and manufacturing requirements.

Choose Topology Optimization when you want to investigate material distribution within an existing component or defined design space and identify opportunities to reduce unnecessary material.
