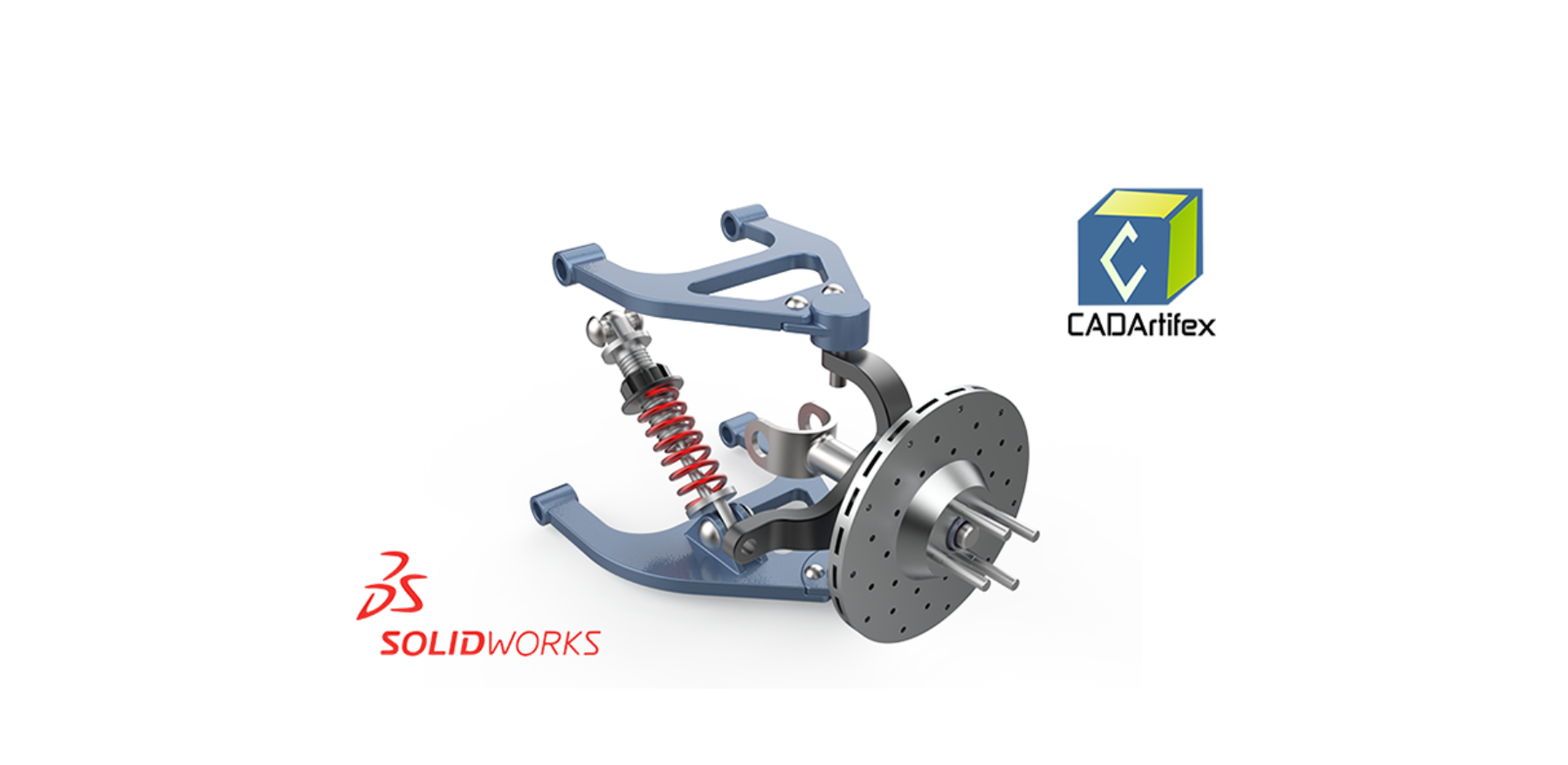

How to Design a Car Suspension System in SOLIDWORKS: Step-by-Step Guide

Designing a car suspension system is an excellent way to learn how 3D modeling, assemblies, mates, motion studies, and design validation work together in SOLIDWORKS.

A suspension assembly contains multiple moving components such as control arms, steering knuckles, springs, dampers, hubs, and mounting brackets. Modeling these components individually and then assembling them correctly provides valuable practice with real-world mechanical design workflows.

In this guide, we'll walk through a practical workflow for creating a car suspension system in SOLIDWORKS, from individual part modeling to assembly and motion verification.

What Is a Car Suspension System?

A vehicle suspension system connects the wheels to the vehicle structure while allowing controlled wheel movement.

A typical suspension assembly can include:

• Upper control arm
• Lower control arm
• Steering knuckle
• Wheel hub
• Shock absorber
• Coil spring
• Mounting brackets
• Ball joints
• Bushings
• Wheel and tire
• Fasteners

The exact components and geometry depend on the suspension architecture and vehicle application. From a SOLIDWORKS perspective, this makes suspension systems useful projects because they combine individual part design, assembly modeling, mates, motion, and interference checking.

---

Step 1: Plan the Suspension Design

Before opening SOLIDWORKS, define the basic structure of the suspension. Start by identifying:

• Wheel center location
• Chassis mounting points
• Upper control-arm mounting points
• Lower control-arm mounting points
• Shock absorber mounting points
• Steering knuckle position
• Wheel travel direction
• Available clearance

A simple layout sketch can help establish the main hardpoints before detailed modeling begins.

Why Are Hardpoints Important?

Hardpoints determine how the major suspension components are positioned relative to one another. For example, changing the mounting location of a control arm can affect the movement of the steering knuckle and wheel. Therefore, it is useful to establish the basic geometry before creating detailed components.

---

Step 2: Create the Suspension Components

Once the basic layout is defined, create the individual components as separate SOLIDWORKS parts.

1. Model the Lower Control Arm

The lower control arm is one of the major structural components of many suspension layouts.

1. Create a new Part.
2. Start a 2D sketch.
3. Define the mounting-point locations.
4. Create the basic arm profile.
5. Add mounting bosses.
6. Add holes for bushings or joints.
7. Extrude the main geometry.
8. Add fillets and chamfers.
9. Apply the required material.

Use dimensions and relations to keep the model parametric.

---

Step 3: Model the Upper Control Arm

The upper control arm can be created using a similar workflow. Start with the required mounting points and create the main arm geometry around them.

Typical features may include:

• Extrude
• Cut-Extrude
• Hole Wizard
• Fillet
• Chamfer
• Mirror
• Pattern

If the suspension is symmetrical, consider using design symmetry wherever appropriate. This can reduce modeling time and make design modifications easier.

---

Step 4: Create the Steering Knuckle

The steering knuckle connects several suspension components and provides an important interface between the suspension and wheel assembly.

When modeling the knuckle, pay attention to:

• Wheel-center location
• Control-arm mounting points
• Hub mounting area
• Steering connection
• Shock mounting location
• Clearances around moving components

For complex shapes, you can combine multiple sketches and features rather than attempting to create the complete geometry in one operation.

---

Step 5: Model the Shock Absorber and Spring

The shock absorber assembly can be created using several separate parts. For example: shock body, piston rod, mounting eye, spring, and spring seats.

Creating the Coil Spring

A helical spring can be modeled using the Helix/Spiral feature:

1. Create a circular sketch.
2. Define the spring diameter.
3. Create a Helix/Spiral.
4. Define pitch and revolutions.
5. Create a profile for the spring wire.
6. Sweep the profile along the helix.

This produces a realistic 3D spring that can be incorporated into the suspension assembly.

---

Step 6: Create the Wheel Hub and Wheel

Next, create the hub and wheel components. For a wheel:

1. Create the wheel profile.
2. Revolve the profile.
3. Create the central hub opening.
4. Add bolt holes.
5. Create spokes if required.
6. Apply fillets and other finishing features.

You can use patterns to quickly create repeated bolt holes or wheel features.

---

Step 7: Start the Suspension Assembly

Once the individual parts are complete, create a new Assembly. Insert the major components first:

1. Chassis or mounting structure
2. Lower control arm
3. Upper control arm
4. Steering knuckle
5. Shock absorber
6. Spring
7. Hub
8. Wheel
9. Additional joints and fasteners

Fix or ground the primary reference component first and then begin defining relationships between the remaining components.

---

Step 8: Apply the Correct Mates

Mates control how components interact inside the assembly. Commonly useful mates include:

• Coincident Mate
• Concentric Mate
• Distance Mate
• Angle Mate
• Hinge Mate
• Width Mate
• Limit Distance
• Limit Angle

A hinge mate, for example, can restrict movement between two components to one rotational degree of freedom. SOLIDWORKS also supports motion-specific mates that can be used independently within a Motion Study.

Avoid Over-Defining the Assembly

One of the common problems when creating mechanical assemblies is adding too many constraints. If a component is already fully constrained, adding additional mates can create redundant constraints.

For Motion Analysis, SOLIDWORKS documentation specifically notes that redundant mates can be equivalent to an over-defined model and recommends defining the model with as few redundant mates as possible.

---

Step 9: Add the Shock and Spring

Connect the shock absorber between the appropriate mounting points using concentric, coincident, distance, or limit mates.

The spring should also be positioned correctly around the shock absorber. Make sure the spring does not intersect surrounding components at its initial position.

---

Step 10: Add the Wheel Assembly

Attach the hub and wheel to the steering knuckle. Use concentric mates for cylindrical interfaces and appropriate coincident or distance relationships for axial positioning.

At this stage, rotate the wheel manually and move the suspension components to check whether the basic assembly behaves as expected.

---

Step 11: Create a Suspension Motion Study

Open the Motion Study tab at the bottom of the SOLIDWORKS interface. You can use mates to control component movement during an animation, allowing values like distance and angle mates to change dynamically.

Depending on your SOLIDWORKS configuration, you can investigate:

• Suspension travel
• Wheel movement
• Control-arm rotation
• Shock and spring compression
• Steering movement

For advanced Motion Analysis, SOLIDWORKS can incorporate forces, springs, dampers, friction, mass properties, and component contact.

---

Step 12: Simulate Suspension Travel

Define the required motion range and observe:

• Wheel vertical movement
• Control-arm rotation
• Shock and spring compression
• Component clearance
• Steering-knuckle movement

The goal is to verify that the CAD assembly kinematics behave logically.

---

Step 13: Check for Interference

SOLIDWORKS Motion Studies can check for interference between selected components throughout the entire range of motion, identifying the exact frame where collisions occur.

Check for interference between:

• Tire and control arm / chassis
• Spring and surrounding components
• Shock absorber and mounting brackets
• Steering knuckle and control arms
• Wheel and suspension links

A suspension assembly may look fine in its default resting position but collide when the wheel moves upward or downward.

---

Step 14: Improve the Suspension Design

Review the design for practical optimization:

1. Excessive Material: Check whether components contain unnecessary weight or material.
2. Poor Clearances: Ensure moving components have sufficient clearance throughout travel.
3. Sharp Edges: Apply fillets and chamfers to reduce stress concentrations.
4. Manufacturability: Ensure parts can be practically machined, cast, or fabricated.
5. Assembly & Serviceability: Verify that fasteners are accessible with tools.

---

Step 15: Create Engineering Drawings

Generate manufacturing documentation including front, top, side, section, and detail views with proper dimensions, tolerances, material specifications, hole callouts, surface finishes, and notes.

---

Common SOLIDWORKS Suspension Design Problems

Why Is My Suspension Assembly Over-Defined?

This usually happens when multiple mates restrict the same degree of freedom. Review the mate tree and delete redundant constraints.

Why Doesn't My Suspension Move?

Check whether one or more parts have been accidentally set to "Fixed" (indicated by (f) in the feature tree) or fully constrained with rigid mates.

Why Does My Suspension Collide During Motion?

The static position may clear, but dynamic travel arcs bring parts together. Always evaluate clearance across the entire travel cycle.

How Can I Control Suspension Travel?

Use Limit Distance or Limit Angle mates, which define maximum and minimum boundaries for movement without locking degrees of freedom.

---

Why Suspension Design Is a Great SOLIDWORKS Project

A suspension system exercises nearly every fundamental skill in CAD design:

• Part modeling & parametric sketch relations
• Complex features (Helixes, Sweeps, Revolves)
• Assembly modeling and subassembly management
• Mechanical and advanced mates
• Motion Studies and kinematic verification
• Dynamic interference detection
• Production-ready 2D drawings

Final Thoughts

The real value in suspension modeling comes from understanding how components are constrained, positioned, and allowed to move together. Once you master this kinematic workflow, you can tackle linkages, robotic arms, automotive drivetrains, and complex industrial equipment.
