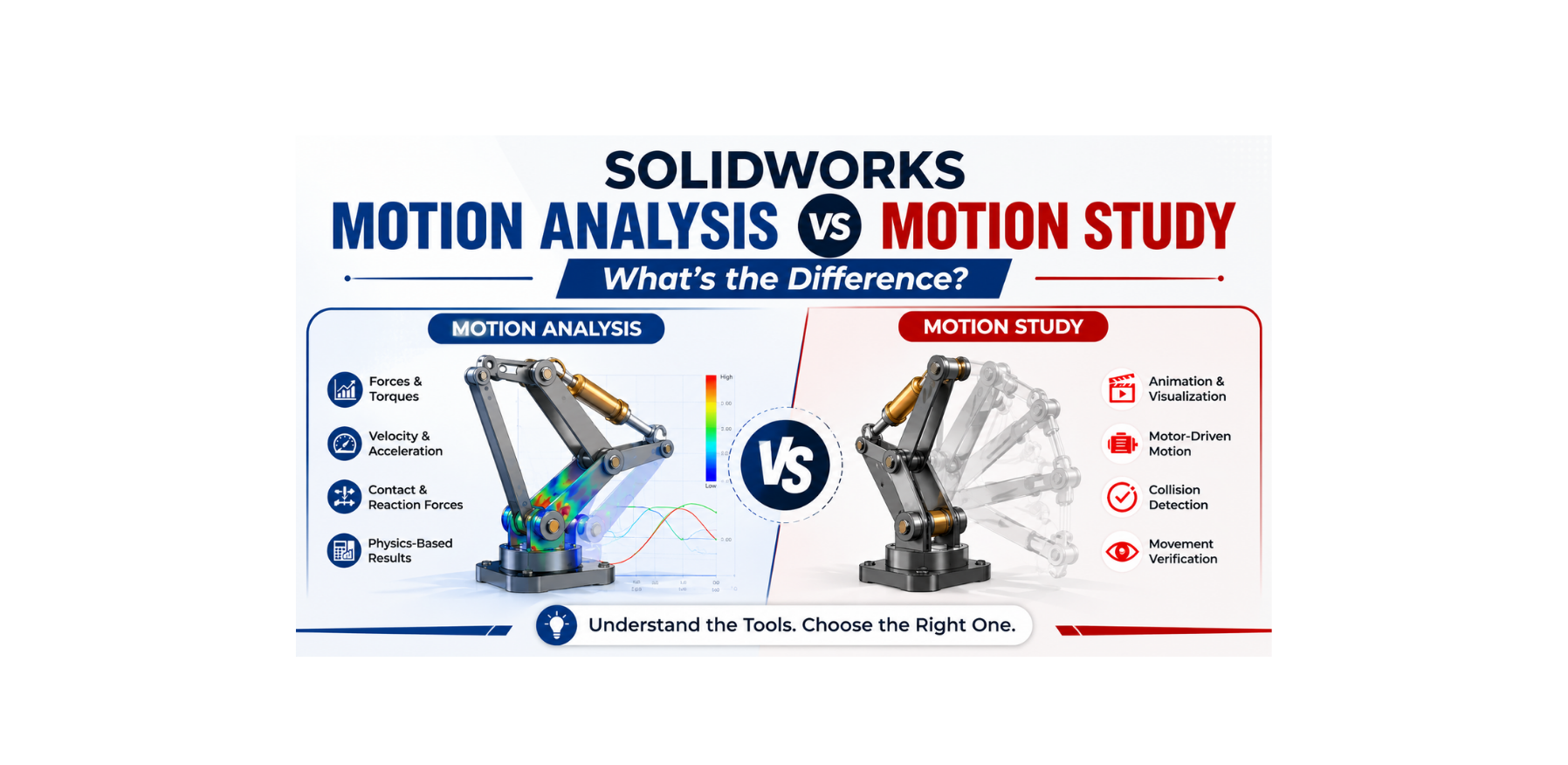

SOLIDWORKS Motion Analysis vs Motion Study: What’s the Difference?

When designing moving mechanical systems in SOLIDWORKS, simply creating an assembly is often not enough. You may also need to understand how the components move, interact, collide, accelerate, and respond to forces.

This is where Motion Study and Motion Analysis come into play.

Although these two tools are closely related, they serve different purposes. A Motion Study is commonly used to visualize and simulate assembly movement, while Motion Analysis provides a more advanced physics-based simulation for evaluating the behavior of mechanical systems.

In this guide, we'll explain the difference between SOLIDWORKS Motion Study vs Motion Analysis, when to use each one, and how to choose the right option for your project.

What Is a SOLIDWORKS Motion Study?

A Motion Study is a SOLIDWORKS environment that allows you to simulate and visualize the movement of components in an assembly.

It can help you answer questions such as:

• How will my assembly move?
• Will two components collide?
• How far will a component travel?
• What happens when I add a motor?
• How long does a movement take?
• What does the mechanism look like during operation?

Motion Studies are particularly useful during the design and visualization stage.
You can create animations and basic mechanical simulations without performing a detailed engineering analysis.

Common Motion Study Applications

Motion Study can be useful for:

• Assembly animation
• Exploded and mechanism animations
• Motor-driven motion
• Linear and rotary movement
• Checking component movement
• Detecting collisions
• Visualizing mechanical mechanisms
• Demonstrating product operation

For example, imagine you have designed a four-bar linkage mechanism.
Instead of manually moving each component, you can add a motor or motion condition and observe how the entire mechanism moves.

What Is SOLIDWORKS Motion Analysis?

Motion Analysis is a more advanced type of motion simulation available within the SOLIDWORKS Motion Study environment.
It uses physics-based calculations to analyze the behavior of mechanical systems.
Instead of simply showing how components move, Motion Analysis can help you understand why they move the way they do and what forces are involved.

Depending on your setup, Motion Analysis can evaluate parameters such as:

• Position
• Velocity
• Acceleration
• Forces
• Torques
• Reaction forces
• Contact forces
• Friction
• Gravity
• Springs
• Dampers
• Motors
• Physical interactions between components

This makes Motion Analysis more appropriate when you need engineering-level information rather than just an animation.

Motion Study vs Motion Analysis: The Key Difference

The easiest way to understand the difference is:

Motion Study helps you visualize and evaluate movement, while Motion Analysis helps you mathematically analyze the physical behavior of a mechanism.

Here's a quick comparison:

The Three Motion Study Types in SOLIDWORKS

To understand Motion Analysis properly, it is important to know that SOLIDWORKS provides different Motion Study types.
Typically, you'll see options such as:

1. Animation

Animation is primarily designed for visual presentation.
It allows you to create animations showing how components move.

For example, you could animate:

• A machine opening and closing
• A robotic arm moving
• A gearbox rotating
• A piston moving
• A product assembly sequence

Animation is useful when your primary goal is to communicate the design visually.

2. Basic Motion

Basic Motion provides more realistic movement than a simple animation.
It can account for elements such as:

• Mass
• Motors
• Springs
• Gravity
• Contact
• Friction

This makes it useful for evaluating basic mechanical behavior.
For many designers, Basic Motion is a good middle ground between simple animation and advanced simulation.

3. Motion Analysis

Motion Analysis is the most advanced option.
It uses a physics-based solver to calculate the motion of a mechanical system.
You can use it to study:

• Forces
• Torques
• Velocities
• Accelerations
• Contact forces
• Reaction forces
• Mechanical interactions

This makes Motion Analysis particularly useful for engineers who need quantitative results.

Example: Four-Bar Linkage

Let's take a simple four-bar linkage as an example.
Suppose you've created the mechanism with four connected links.

Using Animation

With Animation, your primary goal might be to show the mechanism moving.
You can create a visually appealing animation demonstrating the movement.
The focus is:
"What does the mechanism look like when it moves?"

Using Basic Motion

With Basic Motion, you can introduce physical properties and interactions.
You may want to see how the mechanism behaves when:

• Gravity is applied
• Components make contact
• A motor drives the mechanism
• Friction is introduced

The focus becomes:
"How does the mechanism behave during movement?"

Using Motion Analysis

With Motion Analysis, you can go further.
You may want to determine:

• Reaction force at a joint
• Torque required to drive the mechanism
• Velocity of a link
• Acceleration of a component
• Contact forces between components

Now the question becomes:
"What are the engineering forces and motion characteristics of the mechanism?"

Motion Analysis vs Motion Study: A Practical Example

Consider a piston-cylinder mechanism.
You want to rotate a crank and observe the piston movement.

If you use Animation

You can demonstrate the piston moving up and down.
This is excellent for:

• Presentations
• Training
• Design demonstrations

If you use Basic Motion

You can create a more physically realistic simulation involving:

• Motor
• Gravity
• Contact
• Mass

This helps you understand the mechanism's basic behavior.

If you use Motion Analysis

You can investigate:

• Piston velocity
• Piston acceleration
• Crank torque
• Joint reaction forces
• Contact forces

This provides information that can support engineering decisions.

When Should You Use Motion Study?

Use a basic Motion Study when your main goal is visualization or design verification.

For example:

Use Motion Study for:

1. Assembly Animation
   Show how your product operates.
2. Design Presentations
   Create an animation for customers, managers, or team members.
3. Movement Verification
   Check whether components move as expected.
4. Collision Checking
   Identify potential interference during movement.
5. Mechanism Demonstration
   Demonstrate how a linkage, gear system, or actuator operates.

When Should You Use Motion Analysis?

Motion Analysis becomes more useful when you're trying to answer engineering questions.

For example:

Use Motion Analysis for:

1. Force Analysis
   Determine forces acting on components or joints.
2. Torque Requirements
   Estimate the torque required to drive a mechanism.
3. Velocity and Acceleration
   Study how quickly components move and accelerate.
4. Contact Analysis
   Analyze interactions between moving components.
5. Mechanism Optimization
   Compare different designs based on motion behavior.
6. Dynamic System Evaluation
   Understand how forces and motion interact throughout the mechanism.

Motion Analysis Is Not the Same as SOLIDWORKS Simulation

This is an important distinction.
Many beginners confuse Motion Analysis with SOLIDWORKS Simulation.
They are designed to answer different questions.

Motion Analysis
Focuses primarily on:
"How does the mechanism move and what forces are generated during that motion?"

SOLIDWORKS Simulation
Focuses primarily on:
"How does the component or structure respond to loads and boundary conditions?"
For example:
Motion Analysis could help determine the force generated at a joint.
That force could then potentially be used as an input for a structural simulation to evaluate stress and deformation.
So, the two tools can complement each other in a mechanical engineering workflow.

A Typical SOLIDWORKS Engineering Workflow

A practical workflow could look like this:

This workflow allows you to move from basic design visualization toward engineering analysis.

Advantages of Motion Study

Motion Study has several advantages for designers.

Easy to Use
It is integrated directly into the SOLIDWORKS assembly environment.

Great for Visualization
You can quickly demonstrate how your product works.

Useful During Design Development
You can identify movement problems before manufacturing.

Faster for Simple Problems
You don't always need an advanced physics-based simulation just to check movement.

Advantages of Motion Analysis

Motion Analysis provides more detailed engineering information.

Quantitative Results
Instead of simply watching the mechanism move, you can evaluate numerical results.

Force and Torque Evaluation
This can help determine whether actuators, joints, or other components are appropriately sized.

Dynamic Behavior
You can study how forces and motion change over time.

Better Design Optimization
Different design configurations can be compared using measurable results.

Common Mistakes Beginners Make

1. Using Motion Analysis for Every Animation
   If you only need to demonstrate movement, a full Motion Analysis study may be unnecessary.
2. Assuming an Animation Is an Engineering Simulation
   A visually realistic animation doesn't necessarily mean the mechanism has been physically analyzed.
3. Ignoring Mates
   Incorrect or excessive mates can prevent the mechanism from moving correctly.
4. Forgetting Mass Properties
   Physical simulation depends on accurate model properties and material/mass information.
5. Applying Unrealistic Motion Conditions
   A simulation is only useful when its inputs and constraints represent the real system.

Which One Should You Learn First?

If you're new to SOLIDWORKS motion tools, start with Animation and Basic Motion.
Once you understand:

• Mates
• Motors
• Gravity
• Contact
• Springs
• Dampers
• Motion plots

you can move toward Motion Analysis.
This progression makes it easier to understand not only how to create a simulation but also how to interpret its results.

Motion Study vs Motion Analysis: Quick Decision Guide

Use this simple rule:

Choose Motion Study when:
You want to see the movement.
Examples:

• Product animation
• Assembly demonstration
• Mechanism visualization
• Movement verification

Choose Motion Analysis when:
You want to measure and understand the movement.
Examples:

• Force calculations
• Torque requirements
• Acceleration analysis
• Reaction forces
• Contact forces
• Dynamic behavior

Final Takeaway

SOLIDWORKS Motion Study and Motion Analysis are not competing tools—they are different levels of motion simulation designed for different purposes.
Motion Study is ideal when you need to visualize and verify how an assembly moves.
Motion Analysis is better when you need detailed engineering information about forces, torques, acceleration, velocity, contacts, and other physical behaviors.
For a mechanical designer, knowing when to use each tool can make your SOLIDWORKS workflow much more efficient.
If you're looking to go beyond basic modeling and learn assemblies, mechanical design, sheet metal, simulation, and real-world SOLIDWORKS workflows, structured project-based training can help you build those skills faster.
